Seal Cap program handouts

Below are the slides and handouts from the Practical Machinist video series "Lets Program - Seal Cap"

Save to your device and use as referance as needed.

Video One - The Header

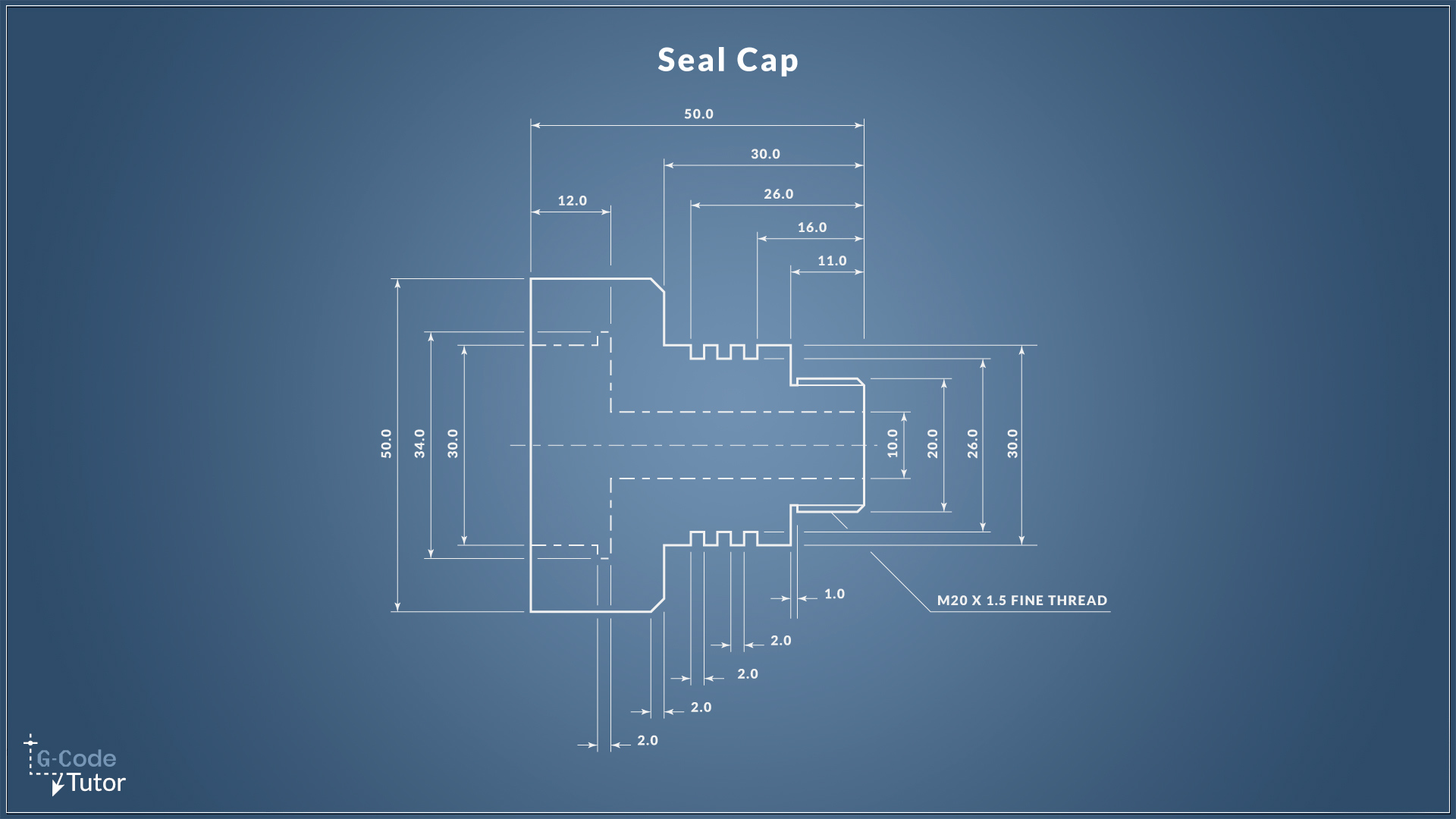

working drawing of part
Seal Cap
Drawing

Working drawing of the part

Open Image

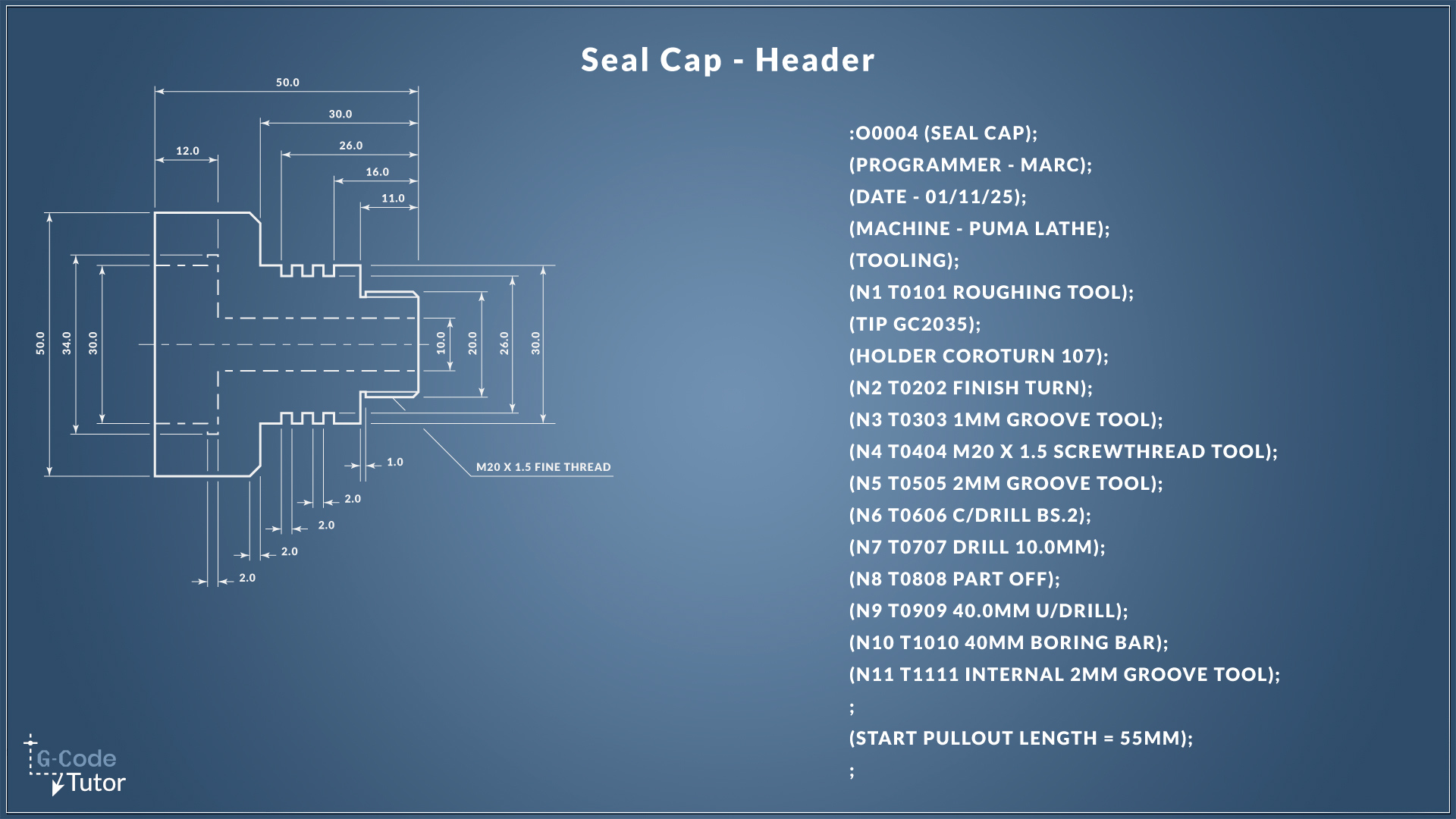

Video One - The Header

G-Code header information
Seal Cap
Header

Header layout G-Code

Open Image

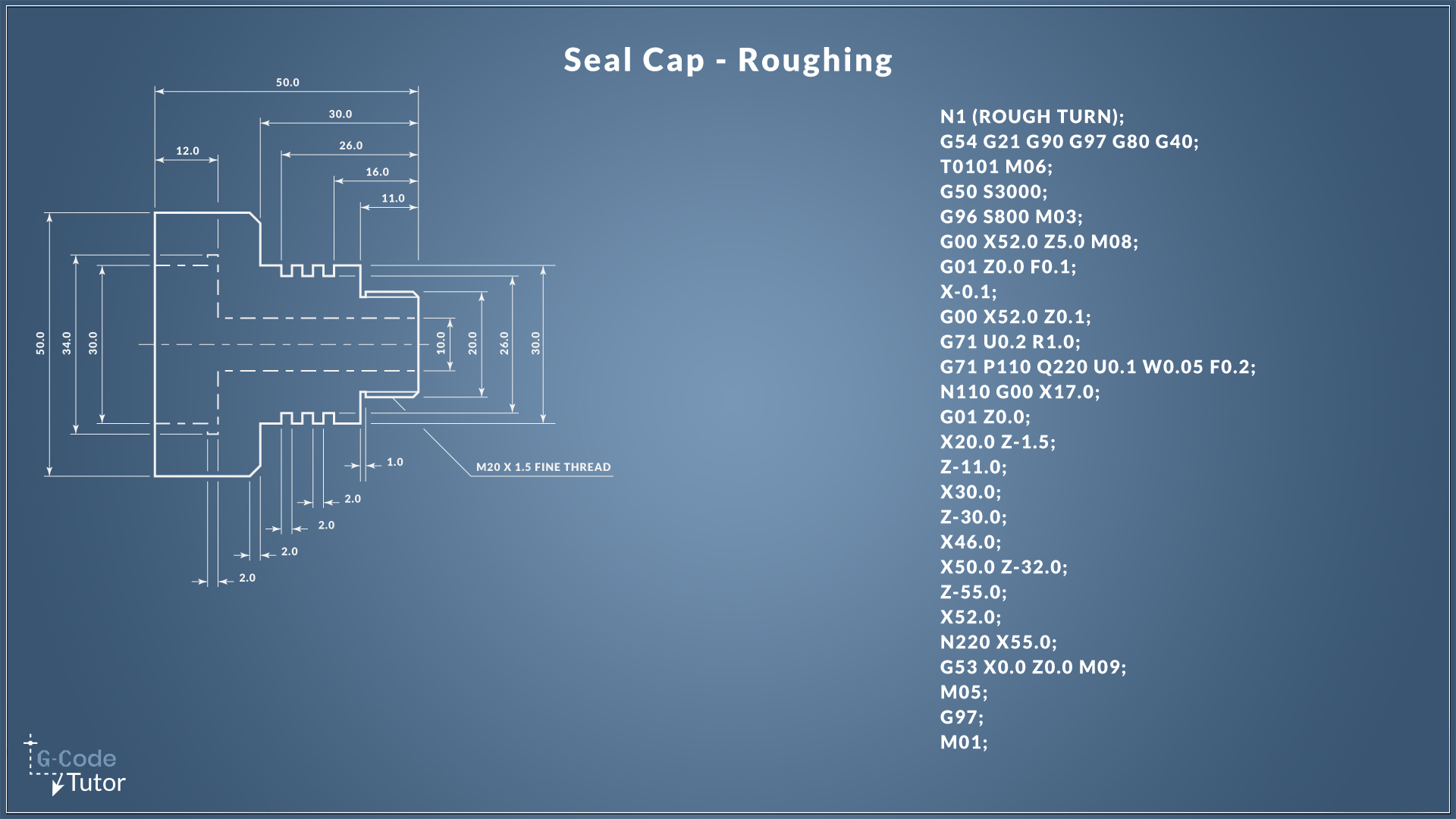

Video Two - The Roughing Cycle

g-code program of part
Seal Cap
The Roughing Cycle

g-code program of the roughing cycle

Open Image

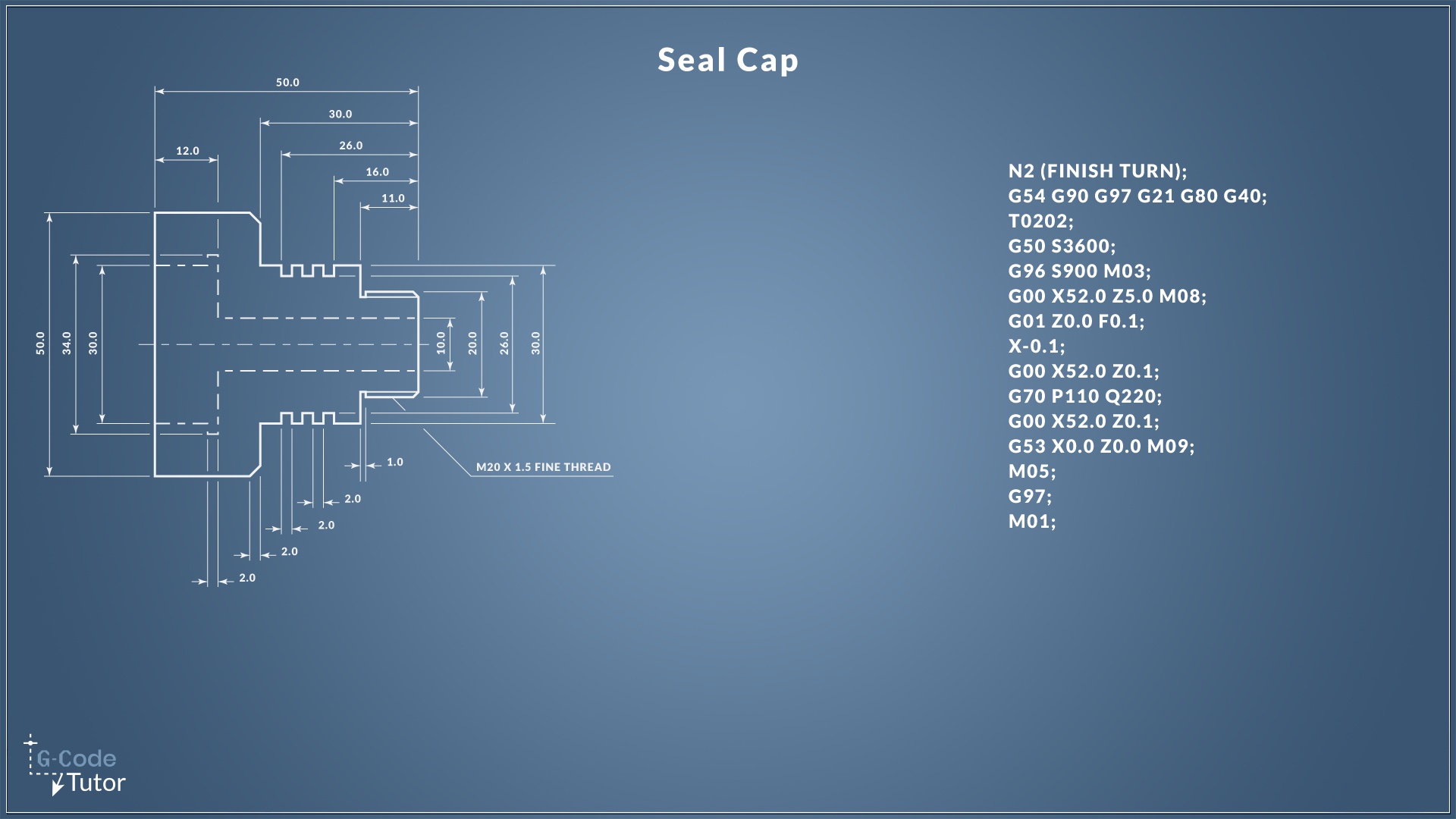

Video Three - The Finishing Cycle

g-code program of part
Seal Cap
The Finishing Cycle

g-code program of the finishing cycle

Open Image

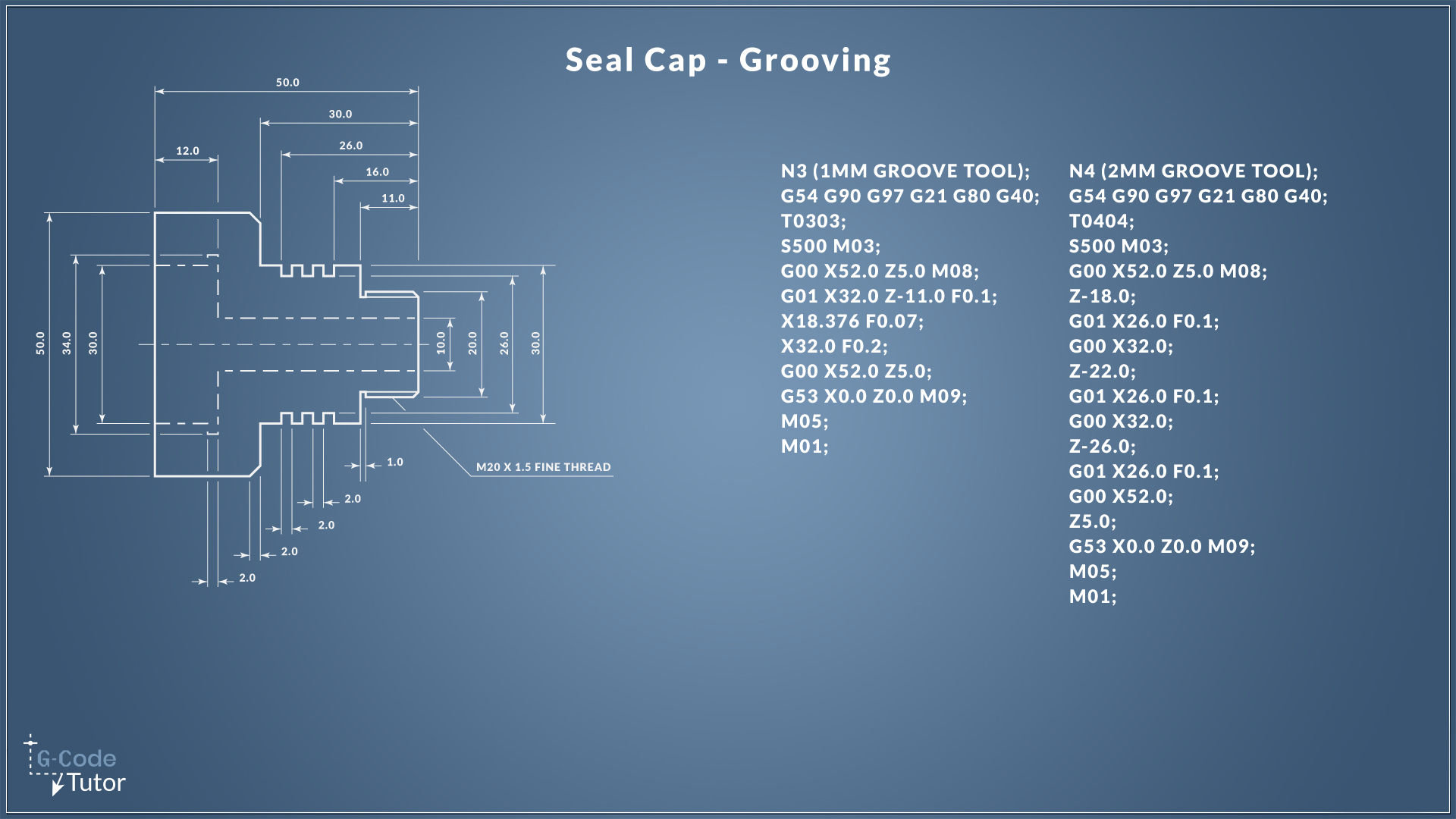

Video Four - The Grooving Sequence

g-code program of part
Seal Cap
Grooving

g-code program of the groove sequence

Open Image

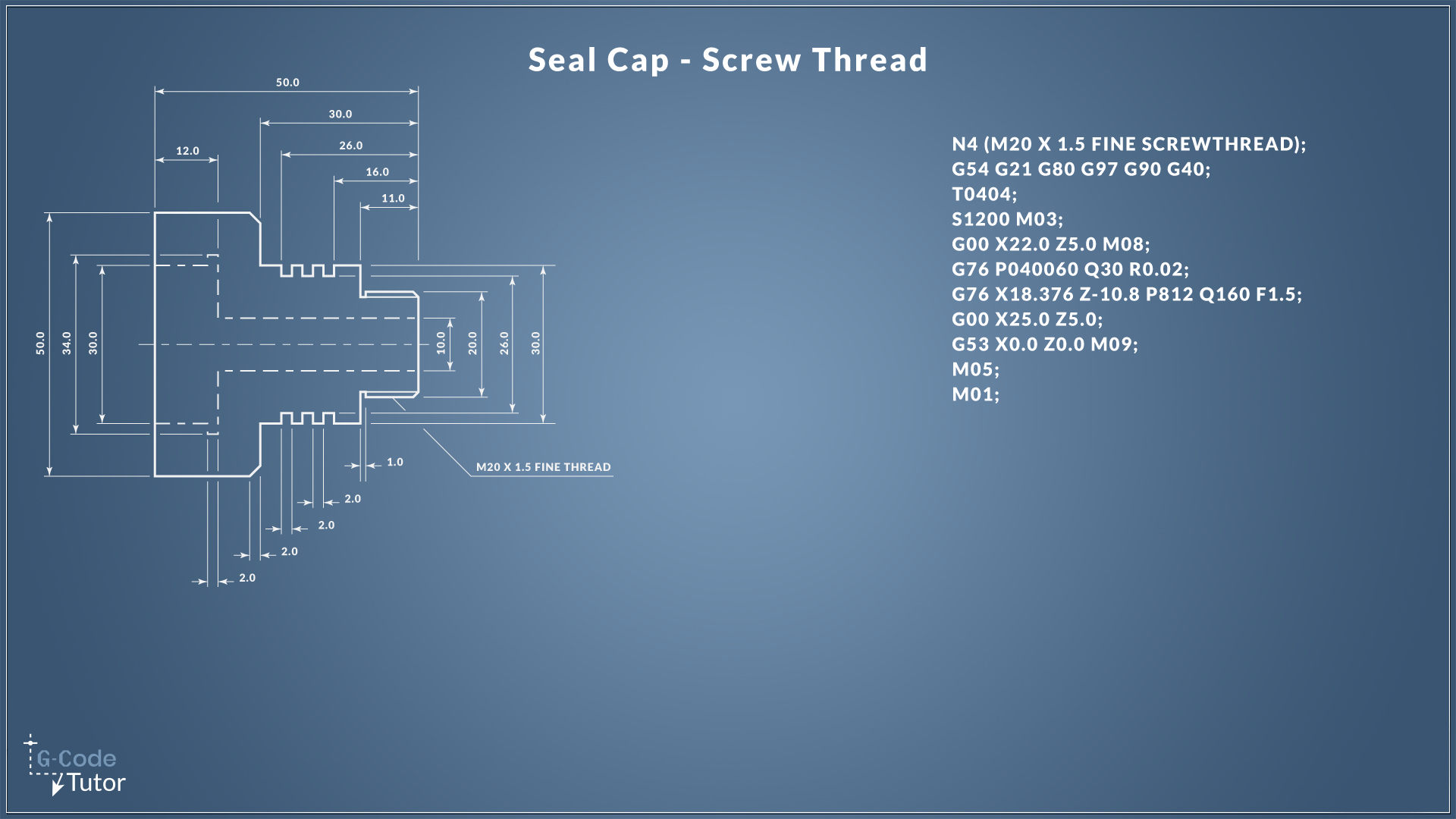

Video Five - The Screwcutting Cycle

g-code program of part
Seal Cap
Screwcutting

g-code program of the screwcutting cycle

Open Image

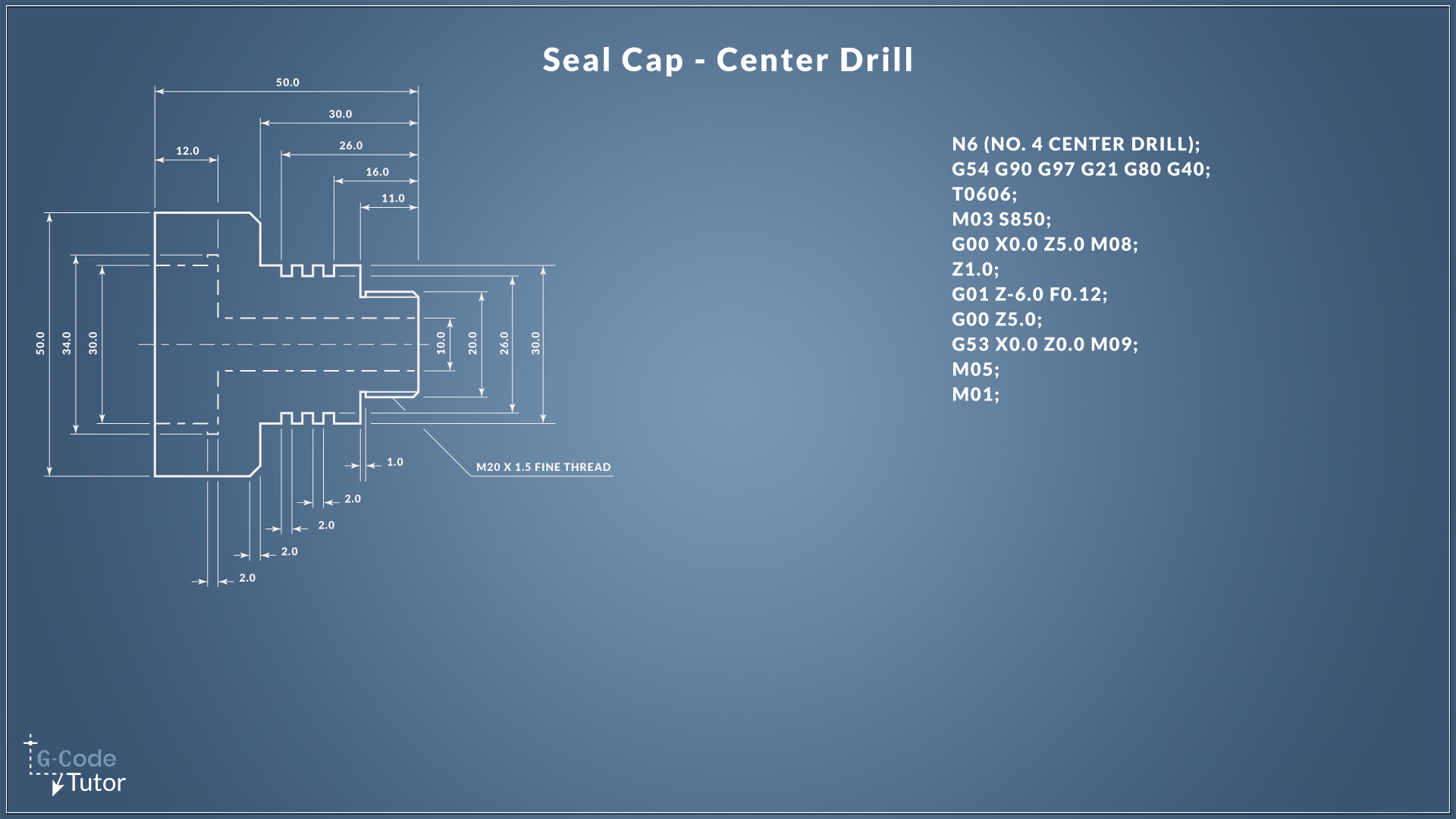

Video Six - Centre Drilling

g-code centre drilling program of part
Seal Cap
Centre Drilling

g-code program of the centre drilling cycle

Open Image

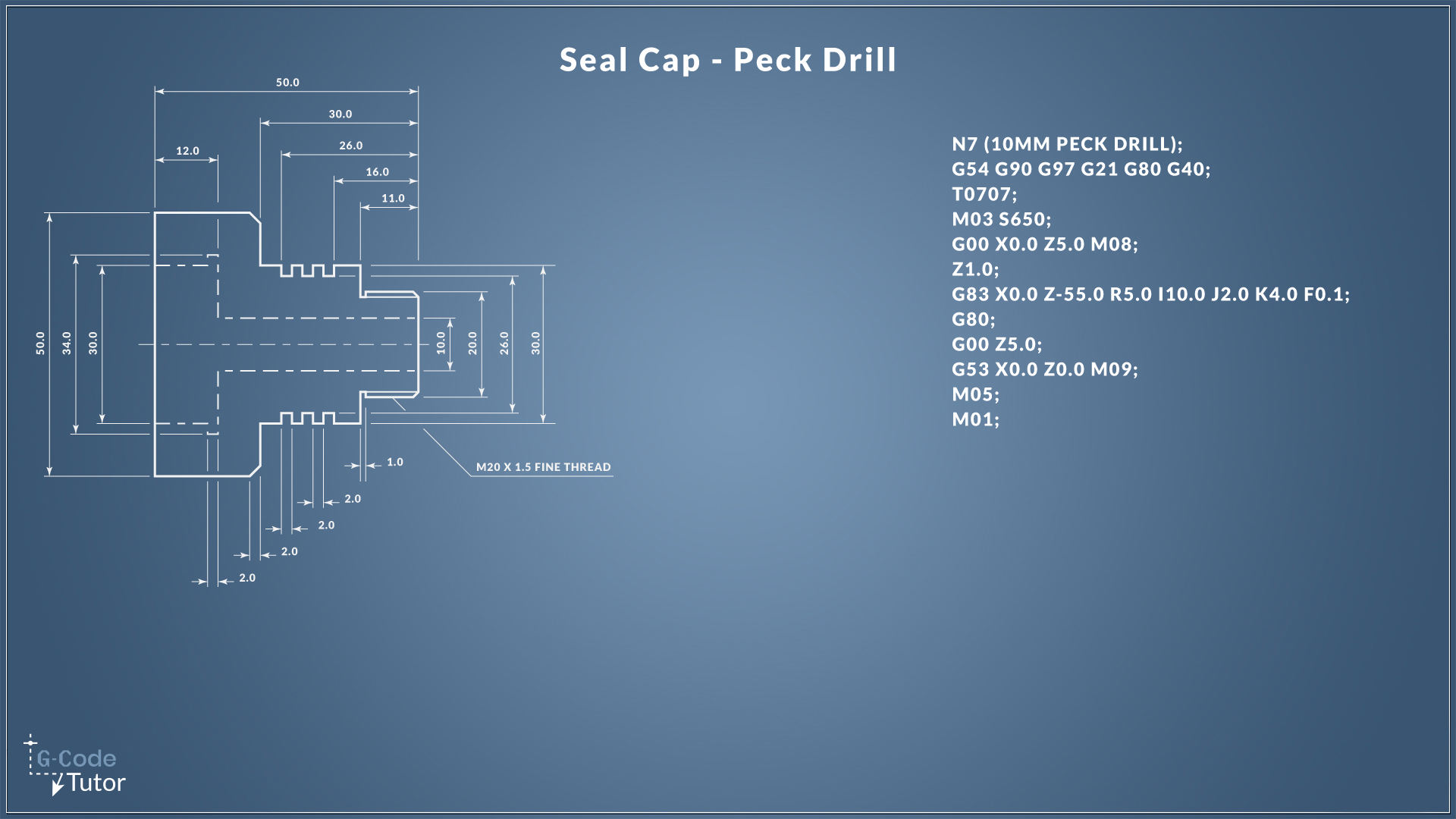

Video Seven - Peck Drilling

g-code peck drilling program of part
Seal Cap
Peck Drilling

g-code program of the peck drilling cycle

Open Image

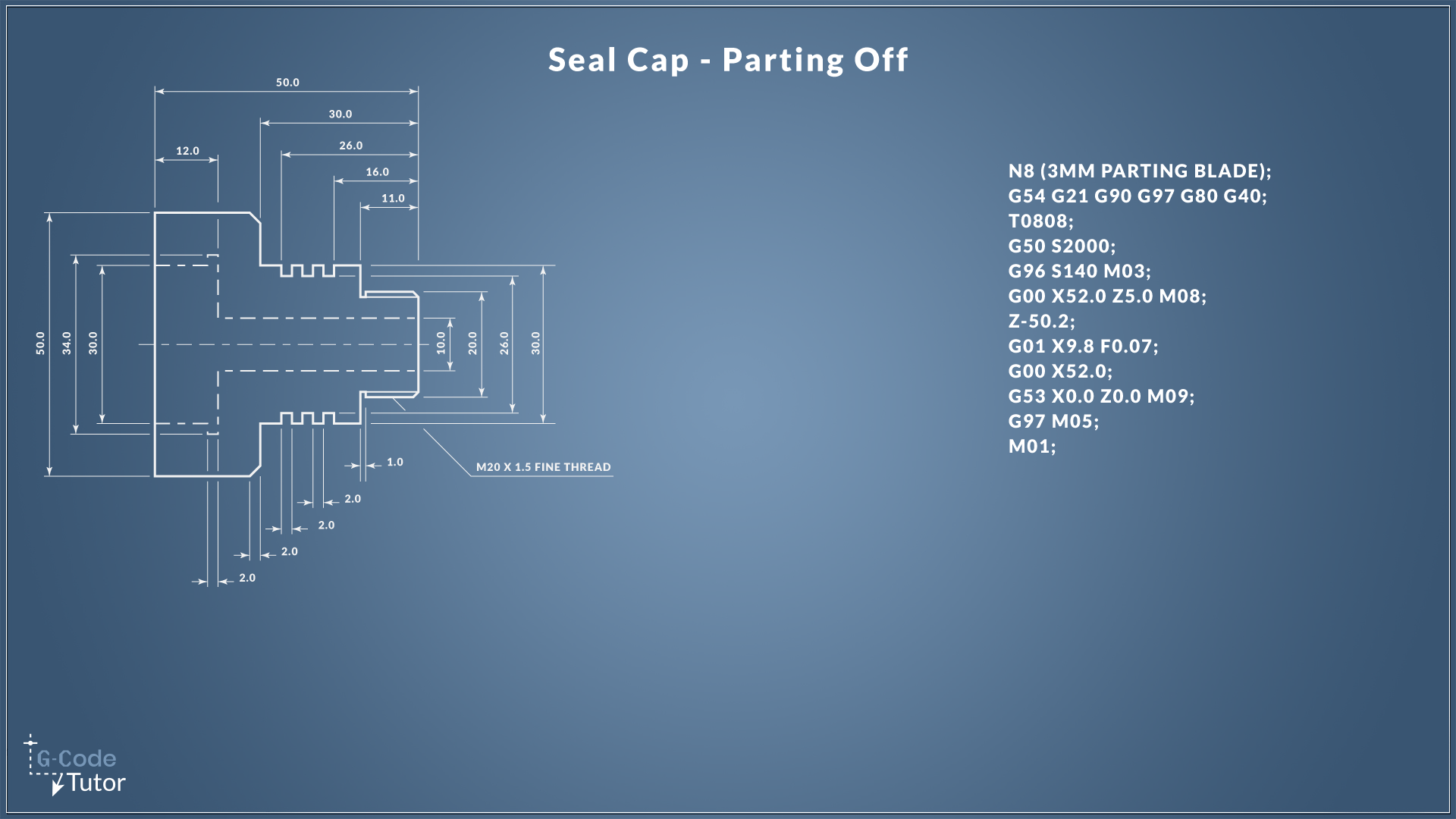

Video Eight - Parting Off

g-code parting off program of part
Seal Cap
Parting Off

g-code program of the parting off cycle

Open Image

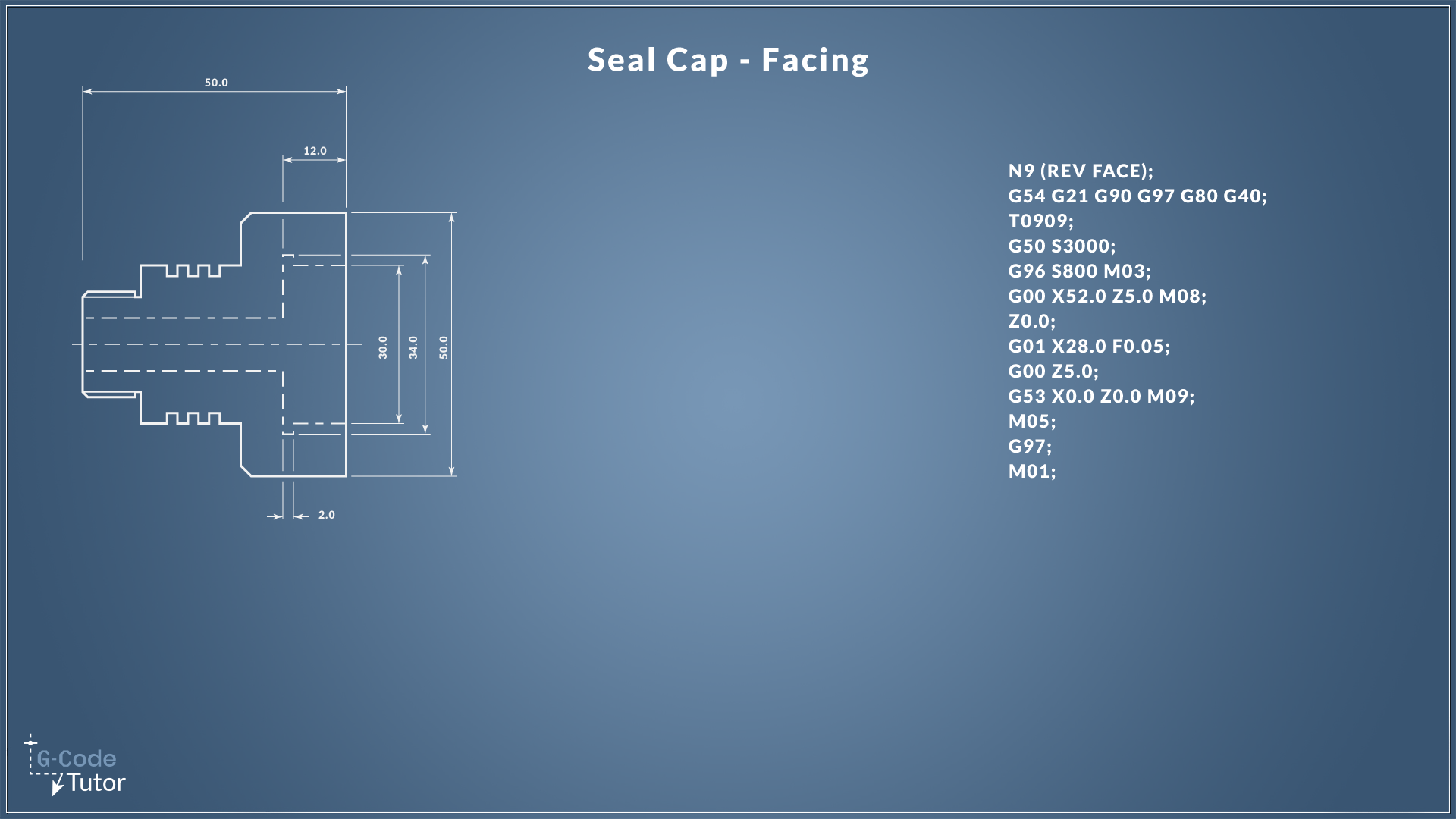

Video Nine - Reverse Face

g-code reverse facing program of part
Seal Cap
Reverse Face

g-code program of the reverse facing operation

Open Image

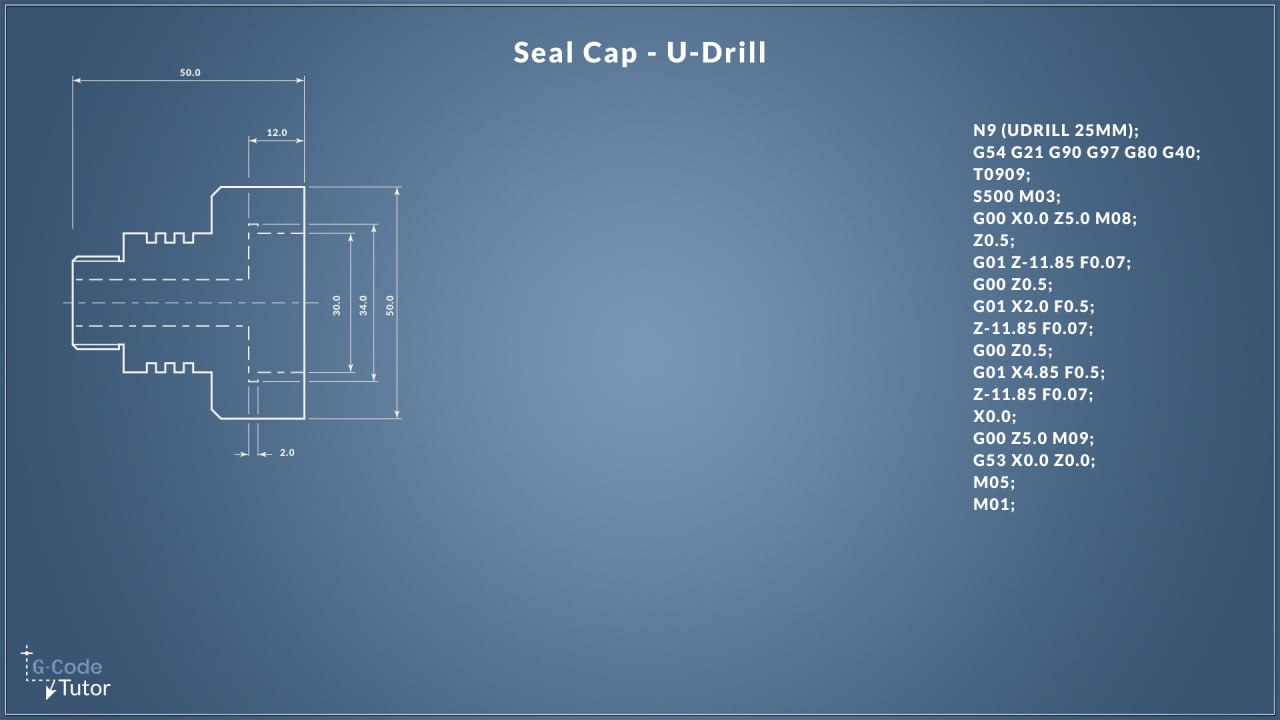

Video Ten - U Drill

g-code U-drill program of part
Seal Cap
U Drill

g-code program of the U-drill operation

Open Image
