Screw Thread Charts

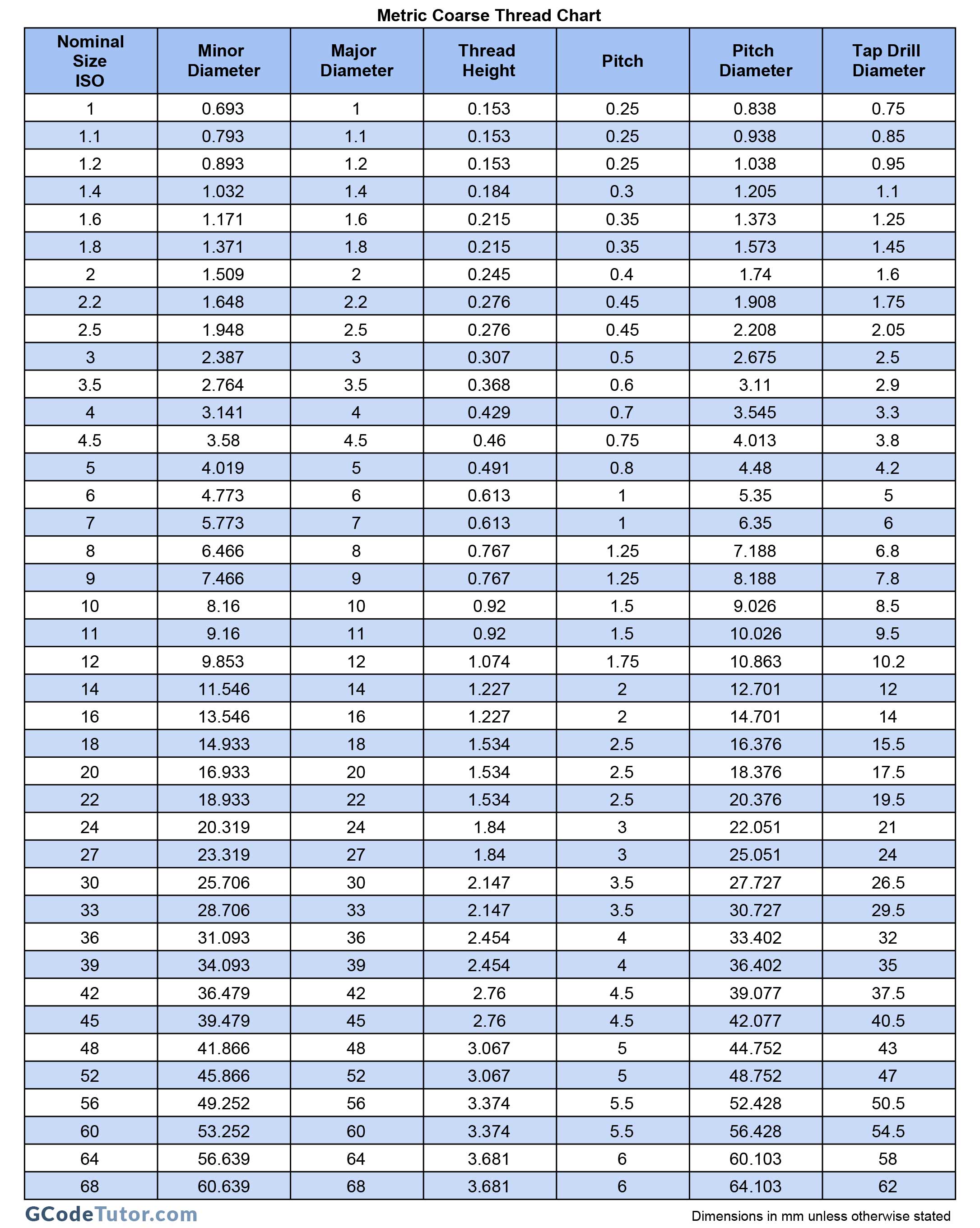

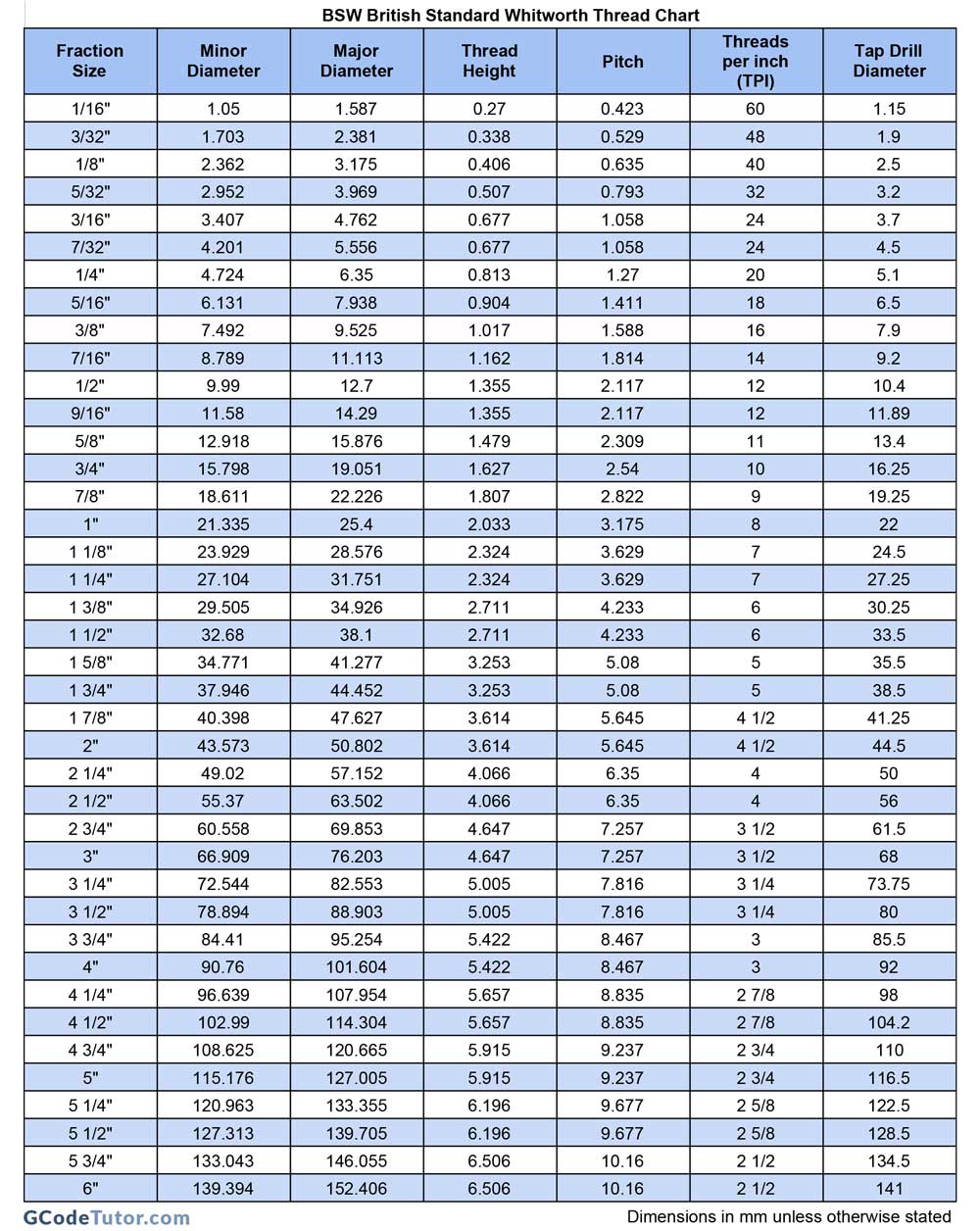

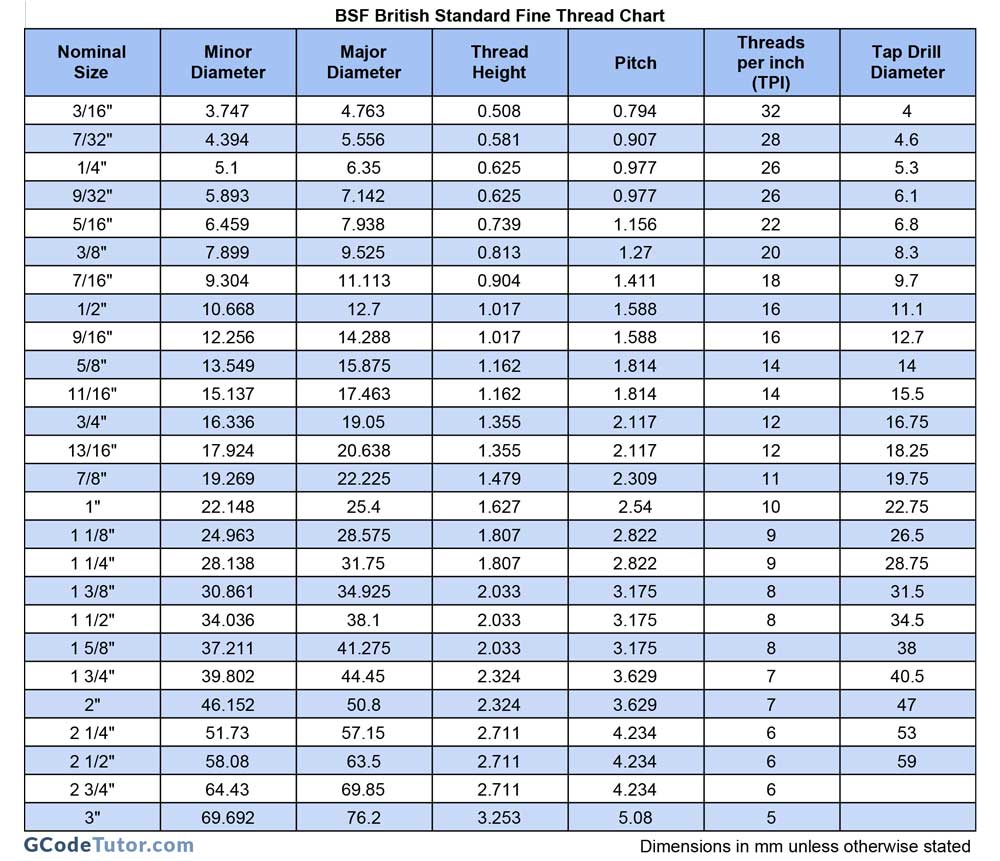

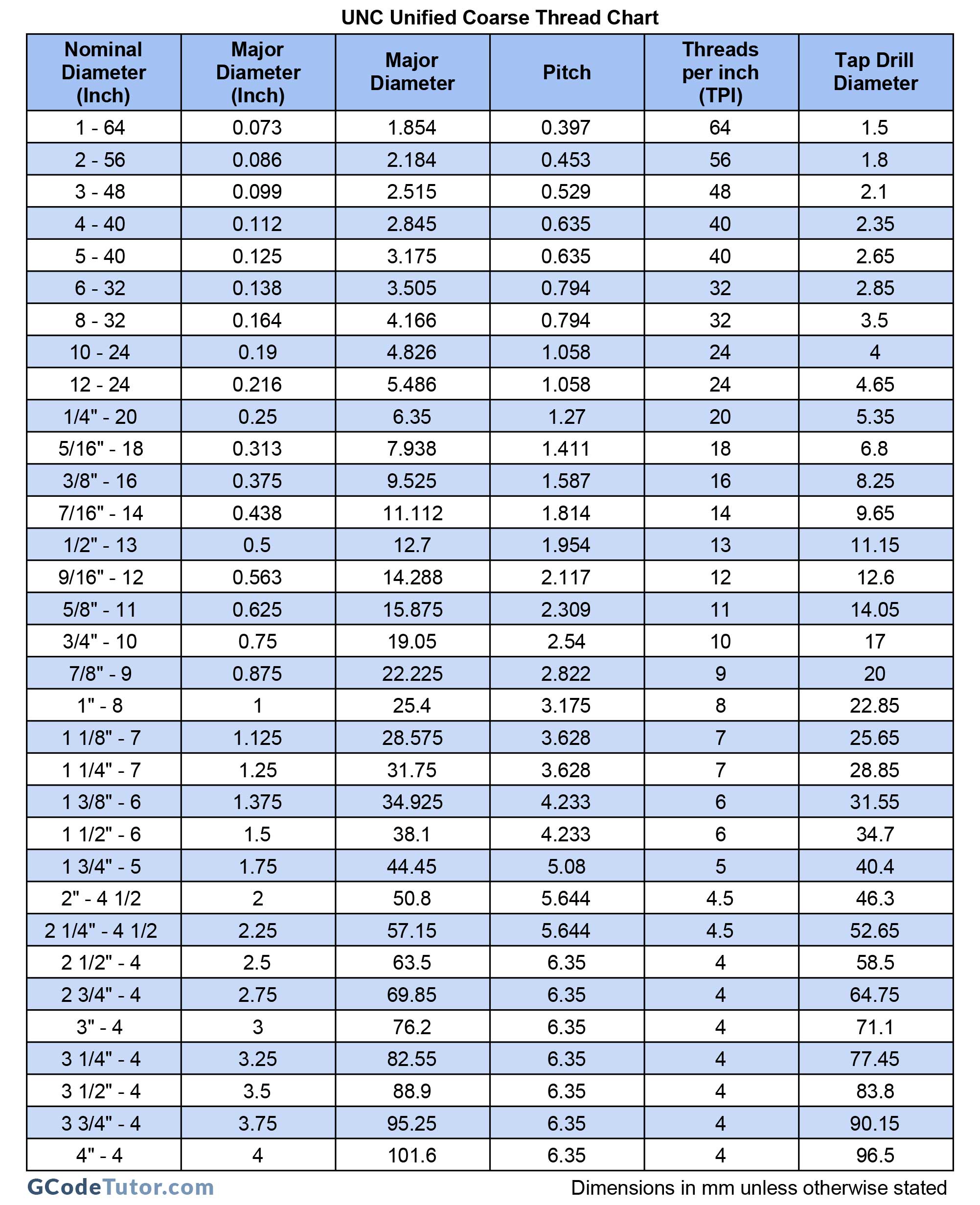

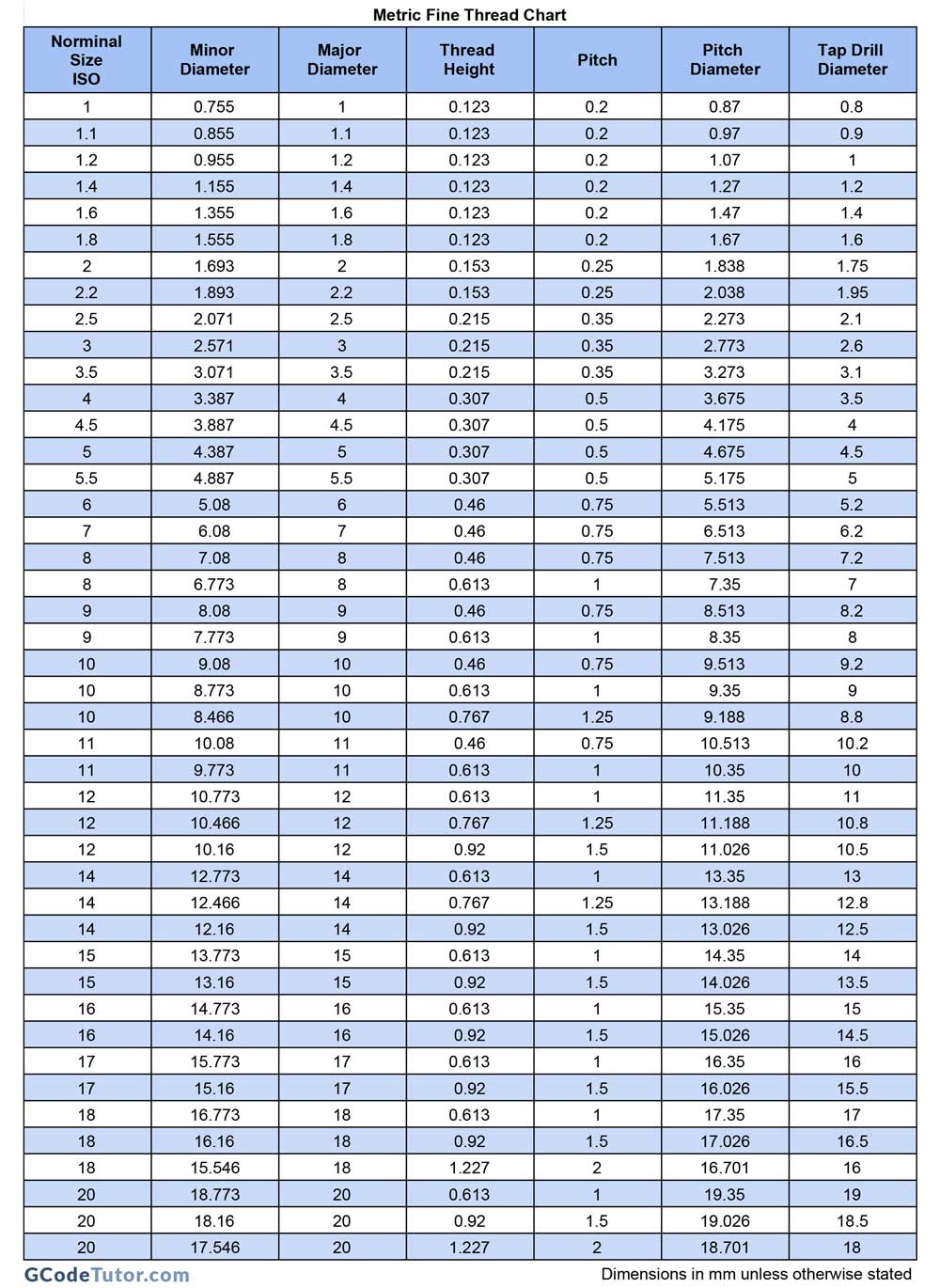

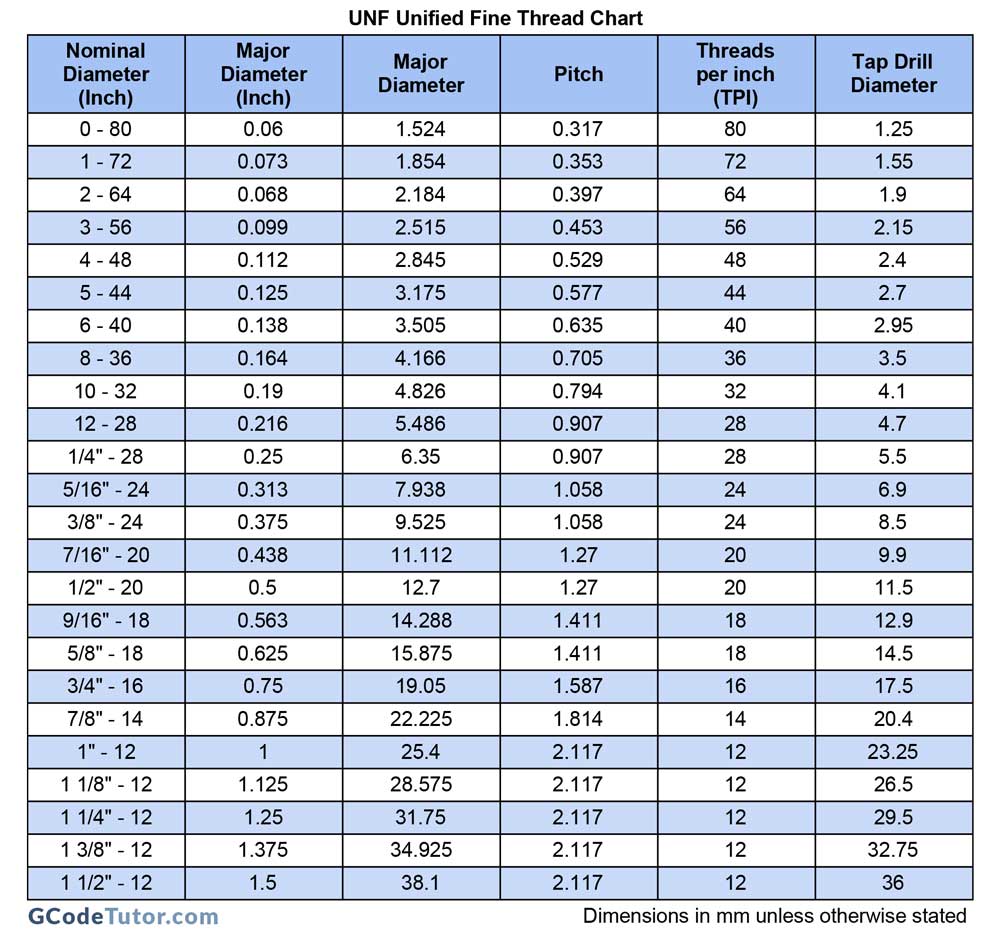

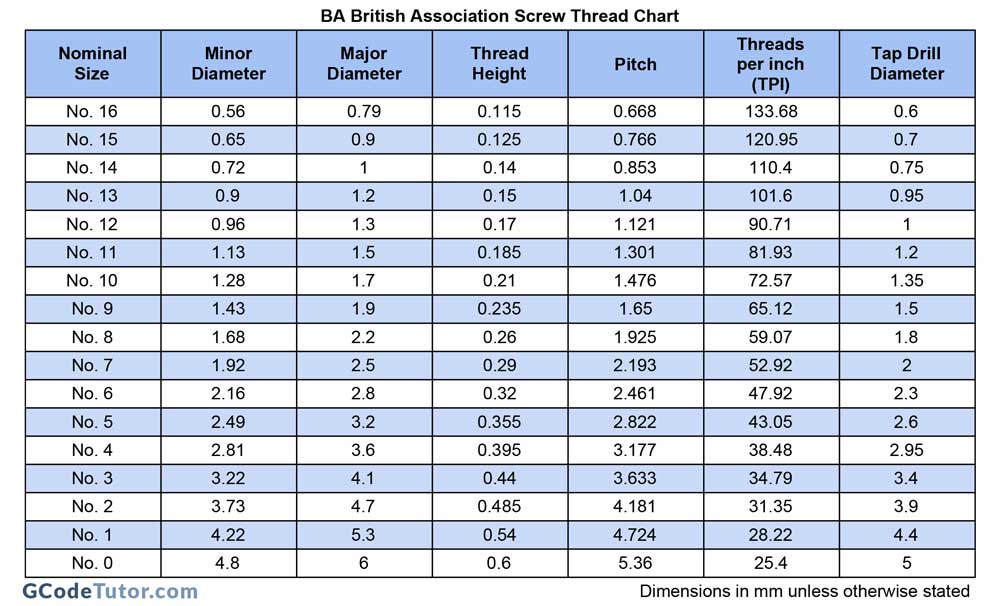

When programming screw thread cycles, we need to give the machine a lot of information about the thread. Below are the standard screw thread information charts, feel free to download the graphics from this page and save them for later reference. alternatively, why not grab my free ebook that contains all the less common charts such as BSP, UNCF etc.

Click on the charts to see a larger version.
